Deciphering Depths: How to Read a Fish Finder

Navigating the waters and catching fish can be greatly enhanced by mastering the use of a fish finder.

This powerful tool not only increases the chances of a successful fishing trip but also saves time and effort by providing crucial information about the underwater environment. To get the most out of it, it’s essential to learn how to read a fish finder and interpret the data it provides.

In this guide, we will explore tips and techniques to help you read a fish finder more effectively and ultimately boost your chances of catching your desired catch.

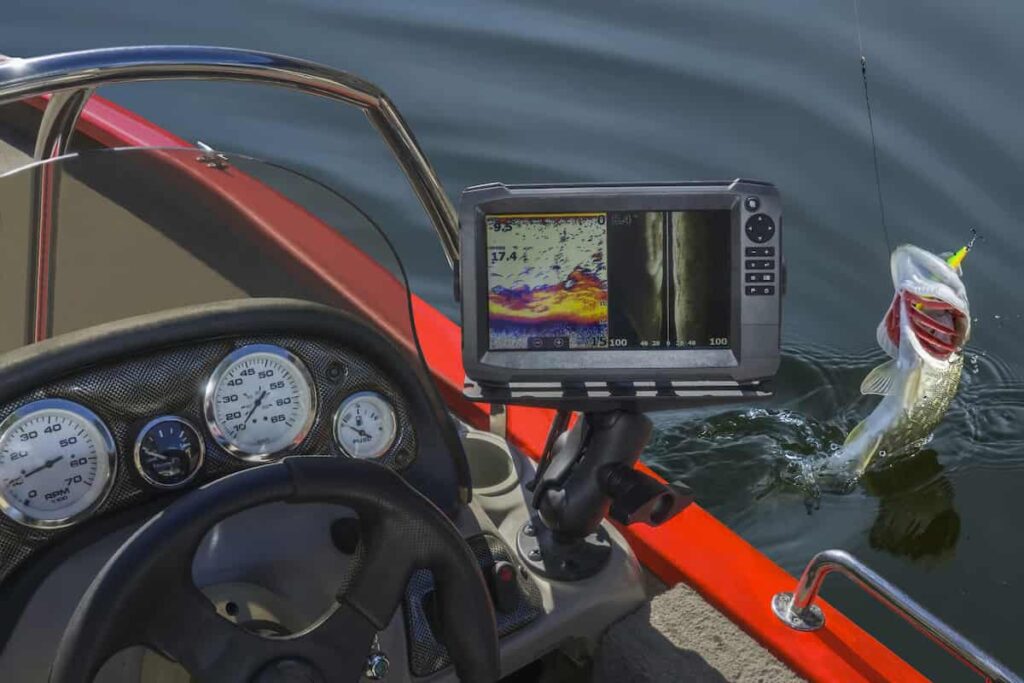

how to read a fish finder

Components of a Fish Finder

The Screen

The screen is an essential component of a fish finder, as it displays the information gathered by the transducer.

There are various types of screens available, such as LCD or color displays. The screen usually shows important information like the depth of the water, location of fish, and bottom structure, which includes rocks and vegetation.

It’s crucial to choose a screen that is easy to read and understand. High-resolution screens are typically preferred, as they provide better image quality and visibility, even in bright sunlight.

The Transducer

A transducer is responsible for sending and receiving sonar signals, which are crucial in detecting fish and underwater structures.

It sends out sound waves into the water, which then bounce off objects like fish and rocks. The transducer receives the reflected signals and converts them into electrical impulses, which are further processed and displayed on the fish finder screen.

There are two main types of transducers:

  • Single beam: This type has one beam that covers a narrow area. It’s an affordable option, but its coverage is limited.
  • Dual or multiple beams: These transducers have two or more beams, providing wider coverage and more detailed information on the fish finder screen.

GPS Feature

Many modern fish finders come equipped with GPS capabilities, which can be a valuable addition for anglers. A fish finder with GPS functionality shows the user’s current position, allowing them to save waypoints and track their route. This feature can be particularly helpful when fishing in new or unfamiliar waters.

GPS-enabled fish finders also aid anglers in locating productive fishing spots and returning to them in future trips. They may also offer mapping features, showing underwater contours and structures that can help direct anglers toward prime fishing locations.

Remember to consider each of these components when choosing a fish finder. Balancing screen quality, transducer type, and GPS functionality will increase the likelihood of a successful and enjoyable fishing experience.

Interpreting Fish Finder Data

Reading Depth

Depth is typically displayed on the side or bottom of the screen, giving you an idea of the water column. The fish finder sends out sonar signals to measure the distance between the surface and the bottom.

Recognizing Fish Icons

Fish finders use various icons to represent fish. Typically, fish icons appear as dots, fish arches, or fish shapes. Fish arches are the most common representation, as they correspond to the fish’s actual position within the sonar beam.

Keep in mind that the fish finder may also display bait or debris, so it’s essential to learn how to differentiate them. The size of the fish icon can often indicate the fish’s size. However, remember that larger icons may also represent a school of smaller fish.

Identifying Underwater Structures

Effective use of fish finders involves identifying underwater structures that may attract fish. These structures can include rocks, vegetation, and submerged objects.

The fish finder displays these structures in different shades or colors, depending on their density and composition. Familiarizing yourself with these patterns will help you locate fish more effectively around the underwater environment.

Using Temperature Readings

Temperature readings are another critical aspect of interpreting fish finder data. Many fish finders come with built-in temperature sensors, allowing you to monitor the water’s temperature and make informed decisions about where to find specific fish species.

Fish are often sensitive to temperature changes and tend to seek areas where they feel most comfortable. By analyzing temperature readings, you can determine the most likely areas to find the fish you are targeting.

how to read a fish finder

Working with Sonar Technology

Traditional Sonar

Traditional sonar technology uses a single beam emitted from the transducer, producing a cone-shaped area beneath the boat. As the sonar signal bounces off submerged objects and the bottom, it returns to the transducer and converts these echoes into an understandable display.

This information provides the user with a clear image of the underwater structure and depth. Frequency is an essential factor for traditional sonar, as lower frequencies provide a greater depth range and a wider sonar cone, while higher frequencies offer more detail and reduce clutter.

Down Imaging and Side Imaging

Down Imaging and Side Imaging sonar technology offer more detailed views of the underwater environment.

Down Imaging generates a narrow, high-frequency beam that scans directly beneath the boat. Side Imaging, on the other hand, employs two separate sonar beams that scan the area to the left and right of the boat.

Both types of imaging cover a larger area and provide clearer pictures of fish, vegetation, and structure. However, they lack the depth range and accuracy of traditional sonar when determining distance or distinguishing objects near the bottom.


CHIRP (Compressed High-Intensity Radiated Pulse) sonar technology is a significant advancement in fish finders and depth finders. It emits a continuous range of frequencies, generating more detailed sonar information than single-frequency units.

CHIRP sonar systems can provide better target separation, allowing the user to distinguish between individual fish, schools, and underwater structures. Additionally, CHIRP sonar is less susceptible to noise clutter, resulting in a clearer and more accurate reading.

Depth Finder Features

Modern depth finder features enhance the user’s ability to read and analyze sonar data. These may include:

  • Adjustable sensitivity: Allows the user to fine-tune the unit’s response to echoes, reducing clutter and improving target detection.
  • Split-screen displays: Enable simultaneous viewing of different sonar types (such as traditional, down, side, or CHIRP imaging) or combining sonar data with GPS navigation and mapping information.
  • Zoom and bottom lock: Provide the ability to focus on specific depth ranges or locations, enhancing the details and clarity of sonar images.
  • Fish icons and alarms: Help identify fish targets and can alert the angler when a fish is detected within a specific size or depth range.
  • Water temperature and speed sensors: Offer valuable data to determine optimal fishing locations and conditions.

Advanced Techniques in Reading Fish Finders

Identifying Different Types of Fish

Fish finders equipped with CHIRP sonar technology provide detailed information about the size and species of fish. By analyzing the fish arch width and comparing it to known species, anglers can determine the type of fish they are targeting. Understanding the difference between bait fish and game fish is crucial, as it will save time and effort in locating the desired species.

Locating Schools of Fish

Fish finders often display schools of fish as dense clusters or clouds on the screen. Anglers should pay attention to underwater structures, such as vegetation and varying water depth, as these areas are likely to attract schools of fish. Fish finder GPS combos can also be useful in marking and returning to identified hotspots. It is important to note that locating a school of baitfish can also lead to finding larger predator species nearby.

Reading Bottom Hardness

Different bottom types, such as rocks, sand, and mud, have varying characteristics that can affect the quality and quantity of fish in the area. Harder bottoms typically indicate areas with higher fish activity and may hold more game fish.

To read bottom hardness, pay attention to the strength and color of the sonar return signal. A strong and dark return indicates a hard bottom, while a weak and light return suggests a softer bottom.

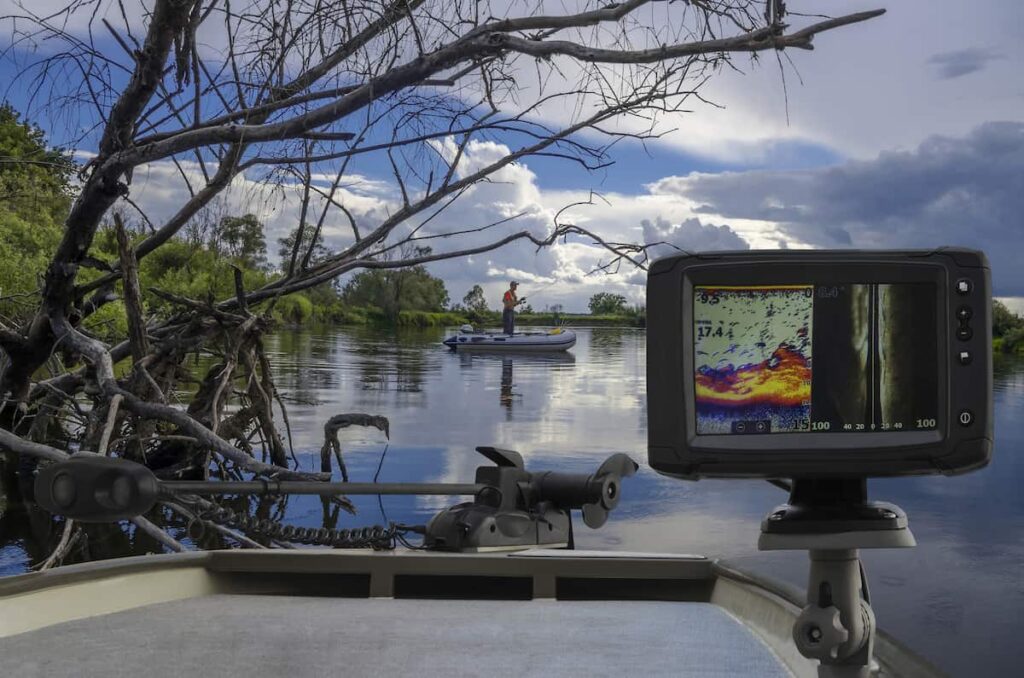

how to read a fish finder

Time to Go Fishing

Utilizing a fish finder effectively can greatly improve the accuracy and success of any angling expedition. With the aid of this technology, locating trophy fish becomes a more manageable task, saving both time and effort.

A fish finder’s readings can provide valuable insight into the underwater world, allowing anglers to identify promising fishing spots with ease. As technology advances, these devices continue to provide clearer and more accurate representations of the underwater environment, making them an essential tool for both novice and experienced fishermen alike.
